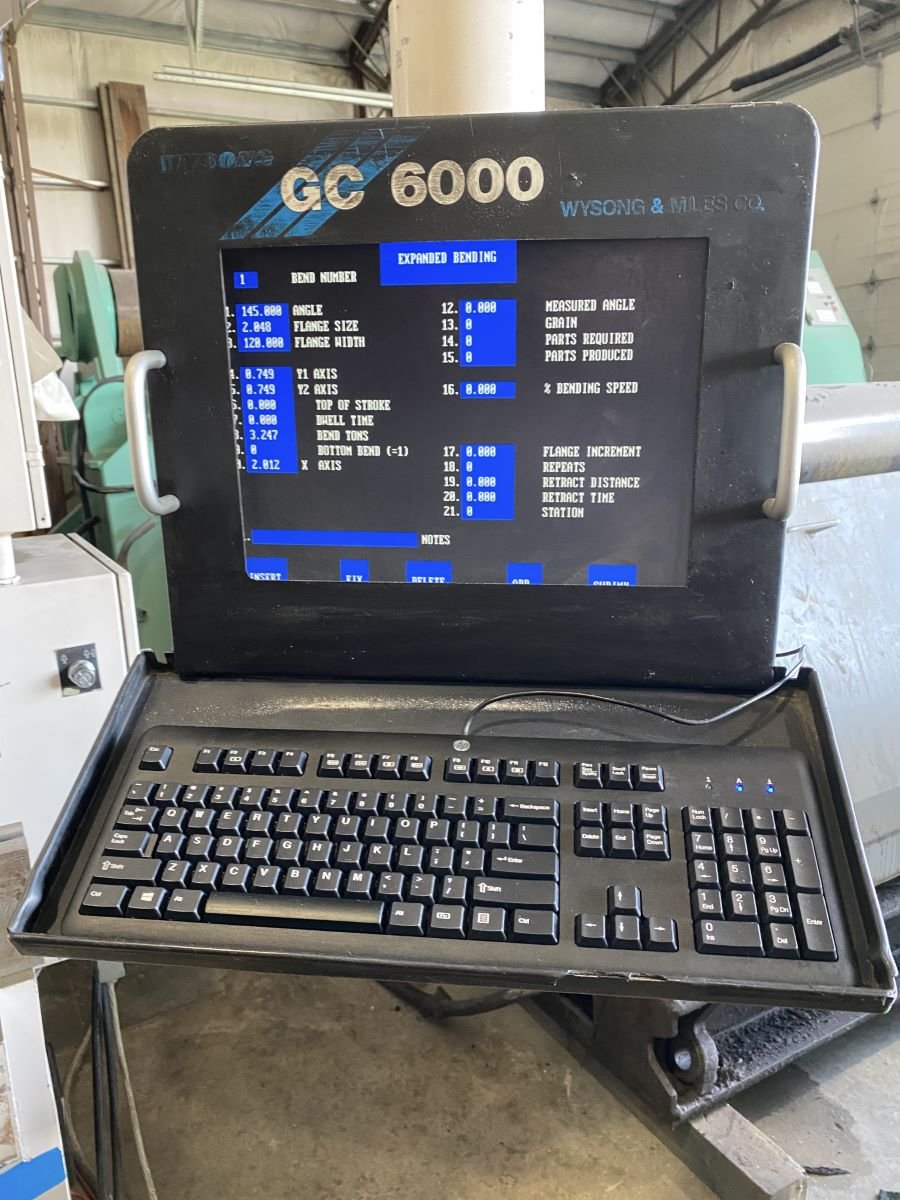

Wysong GC 6000 3-axis CNC pendant control (X, Y1, Y2)

Back gauge with CNC controlled X-axis

Slotted riser block on bed

5-1/2″ high x 2-7/8″ wide x 168″ long

Two foot pedal controls

Pedestal stand control

Tonnage - 175

Overall length of bed & ram - 168"

Distance between housings - 150"

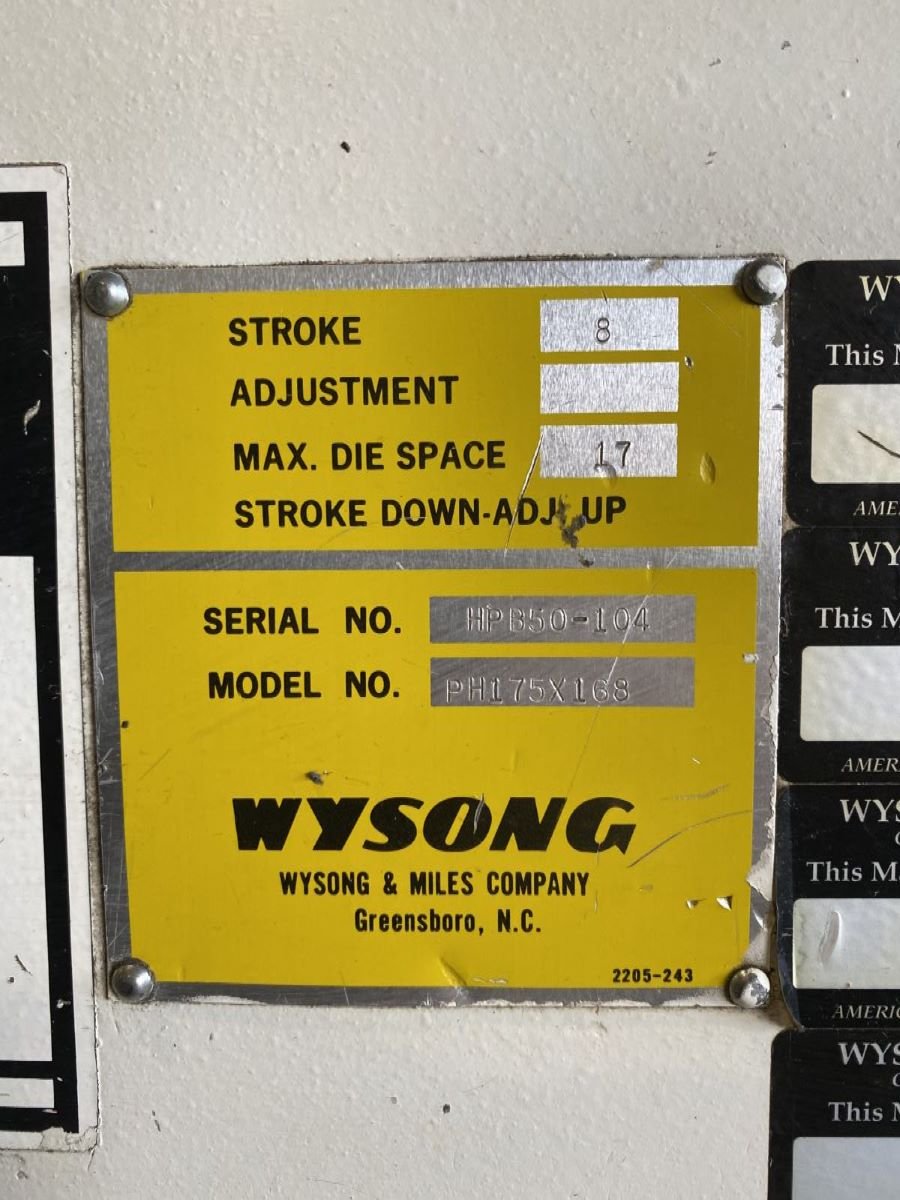

Stroke - 8"

Maximum die space - 17"

Throat depth - 10"

Floor to top of bed - 34"

Motor - 15 HP / 1760 RPM

Volts - 208-230/460

Phase - 3

Cycles - 60

Amps - 40.9-40.6/20.3

Approximate dimensions - 186" x 80" x 106-1/2" high

Shipping dimensions - 230" long x 80" wide x 110" high

Approximate weight - 32,000 lbs.
