72″ x 0.135″ x 40000 lbs. Red Bud Cut To Length Line
SOLD
-
Manufacturer: Red Bud
Serial Number: M0018
Model Year: 1984
Size: 72″ x 0.135″ x 40000 lbs.
Stock Number: 11348
-

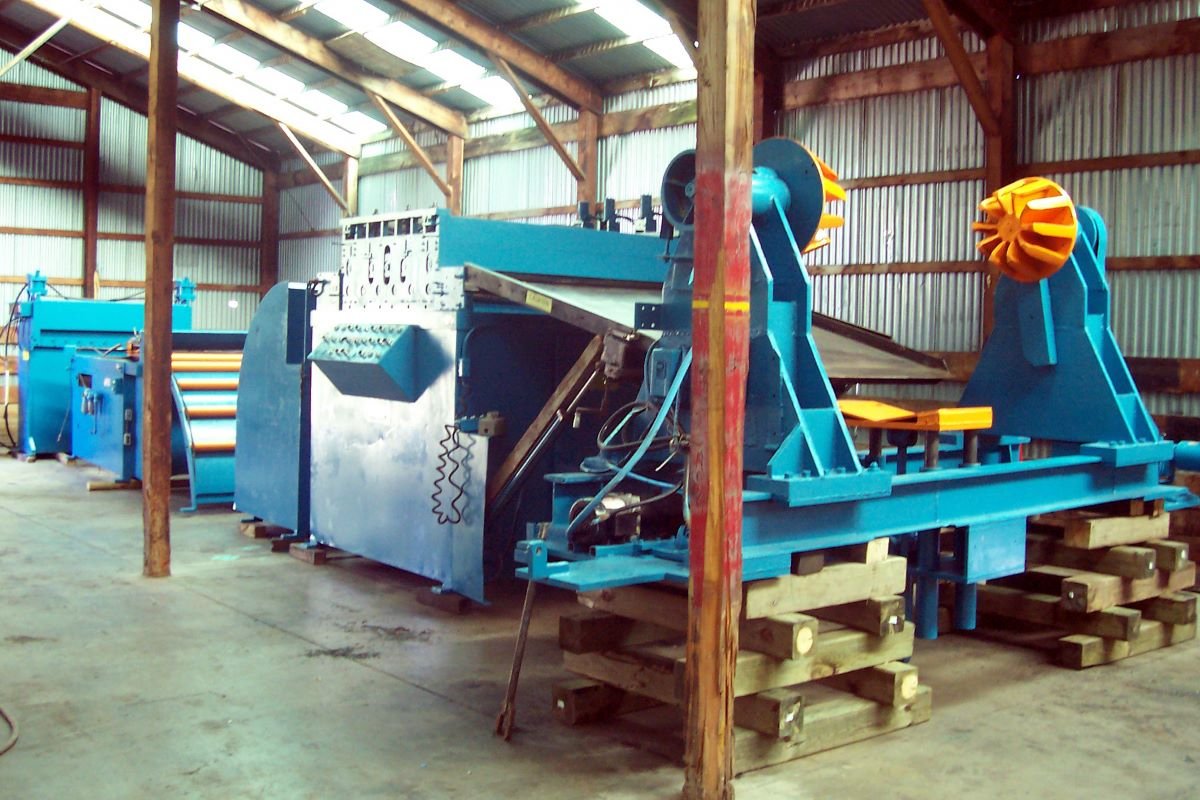

Line consists of:
40,000 lbs uncoiler with hydraulic lift on coil cradle

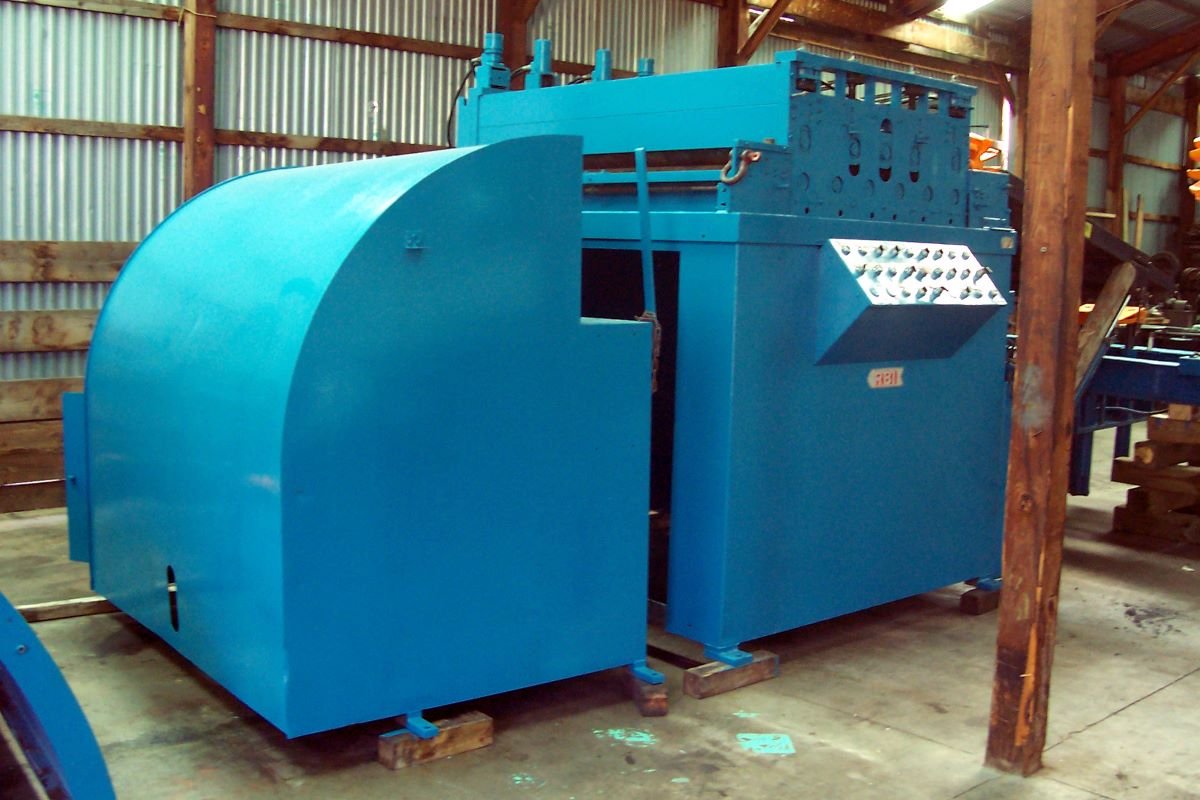

Stock straightener with peeler

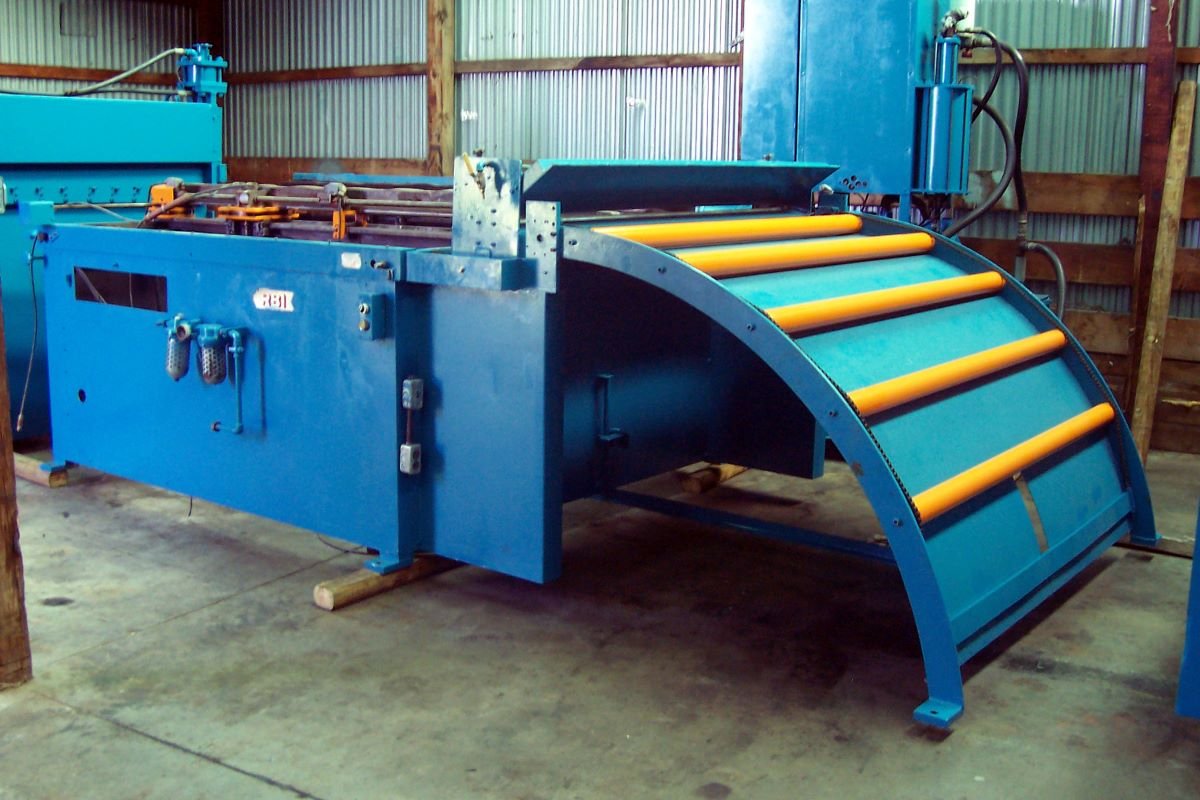

Feed table, double gripper
Hydraulic shear
Hydraulic unit
-
Maximum width
72" (1828 mm)
Maximum thickness, CRS
0.135" (3.5 mm)
Minimum thickness, CRS
0.020" (0.5 mm)
Straightener
–
... Number of rolls
11 (including pinch rolls)
... Diameter of rolls
6" (152 mm)
Shear
–
Feed table, Double gripper
–
... Length
72-1/4" (1835 mm)
Uncoiler capacity
40,000 lbs.
... minimum coil width
24"
Hydraulic Unit
–
... Model
P100-60-30
... Serial
PUG84-M0018
... Motor
100 HP / 1770 RPM
