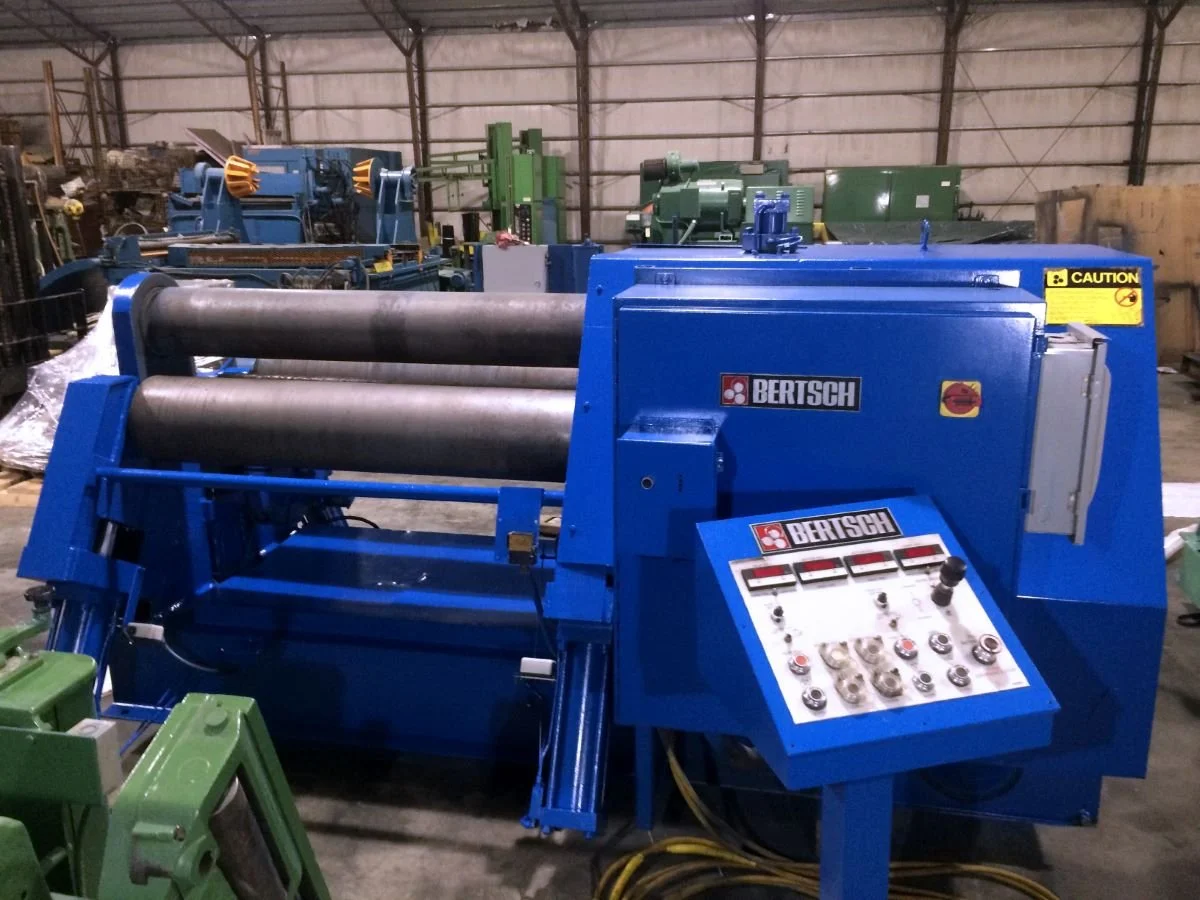

Rolling operator control console

Digital readouts in console: (1) for each side roll, (2) for the pinch roll

Hydraulic drop end

Hydraulic pinch roll adjustment

Hydraulic side roll adjustment

Standard Bertsch leveling system on side rolls

Maximum material thickness

5/8"

Bending length

60"

Bending capacity

.688" x 5' (20.5" min. ID)

Maximum tensile strength

100,000 PSI

Maximum yield

66,500 PSI

Diameter of top roll

10.5"

Diameter of pinch roll

12"

Diameter of side rolls

12"

Roll hardness

32-34 RC

Rolling speed

0 – 14 feet per minute

Motor

25 HP

Volts

440

Phase

3

Cycles

60

Approximate weight

15,000 lbs

Approximate dimensions

12' 2" x 8' 4" x 6' 8" high
