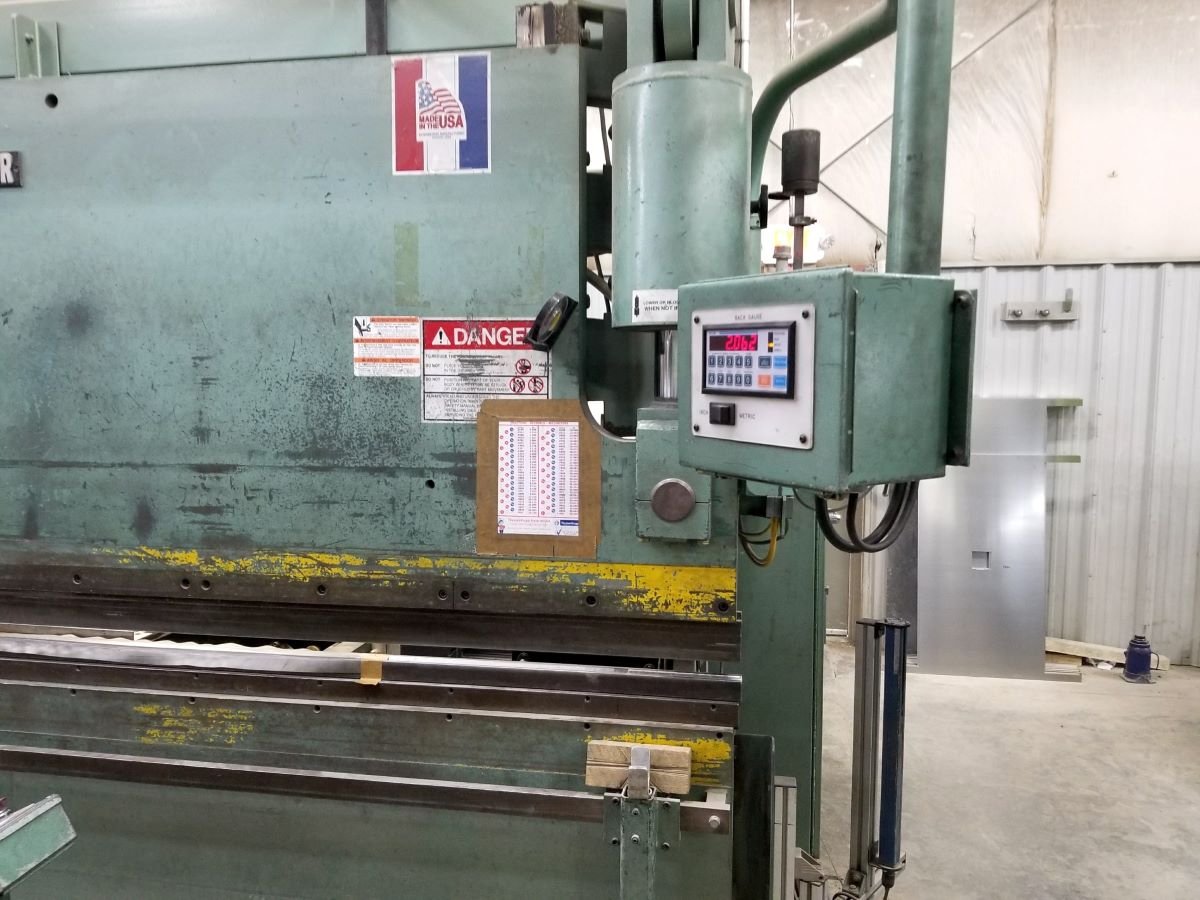

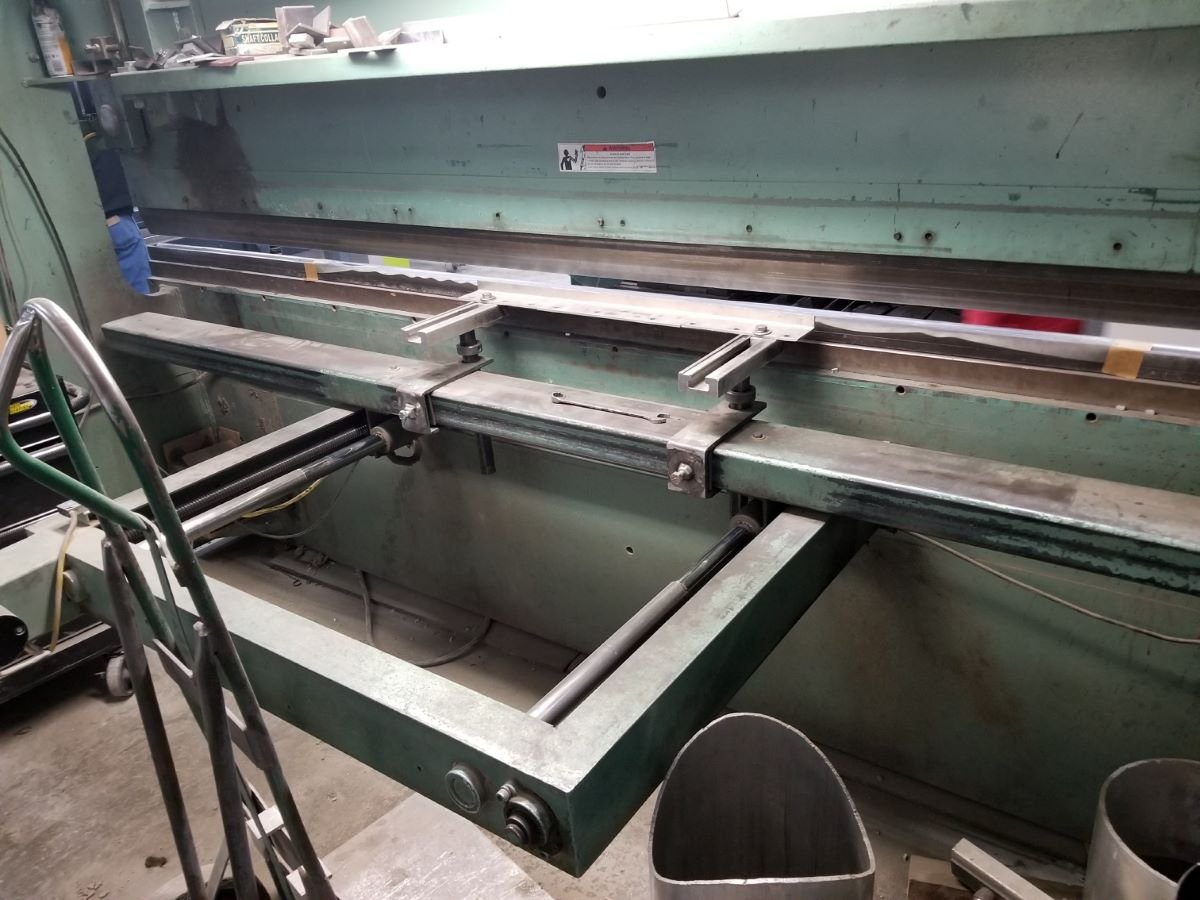

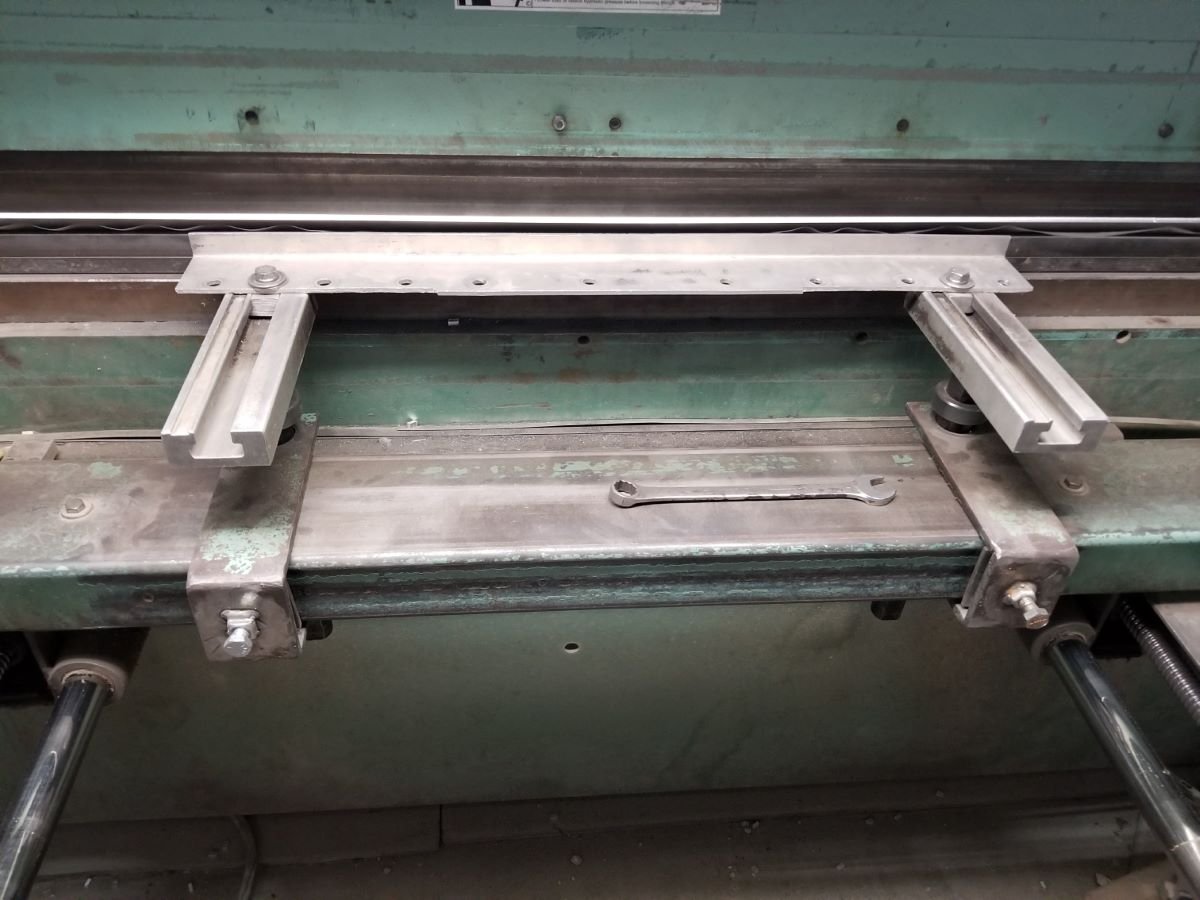

2-Axis CNC control & back gauge

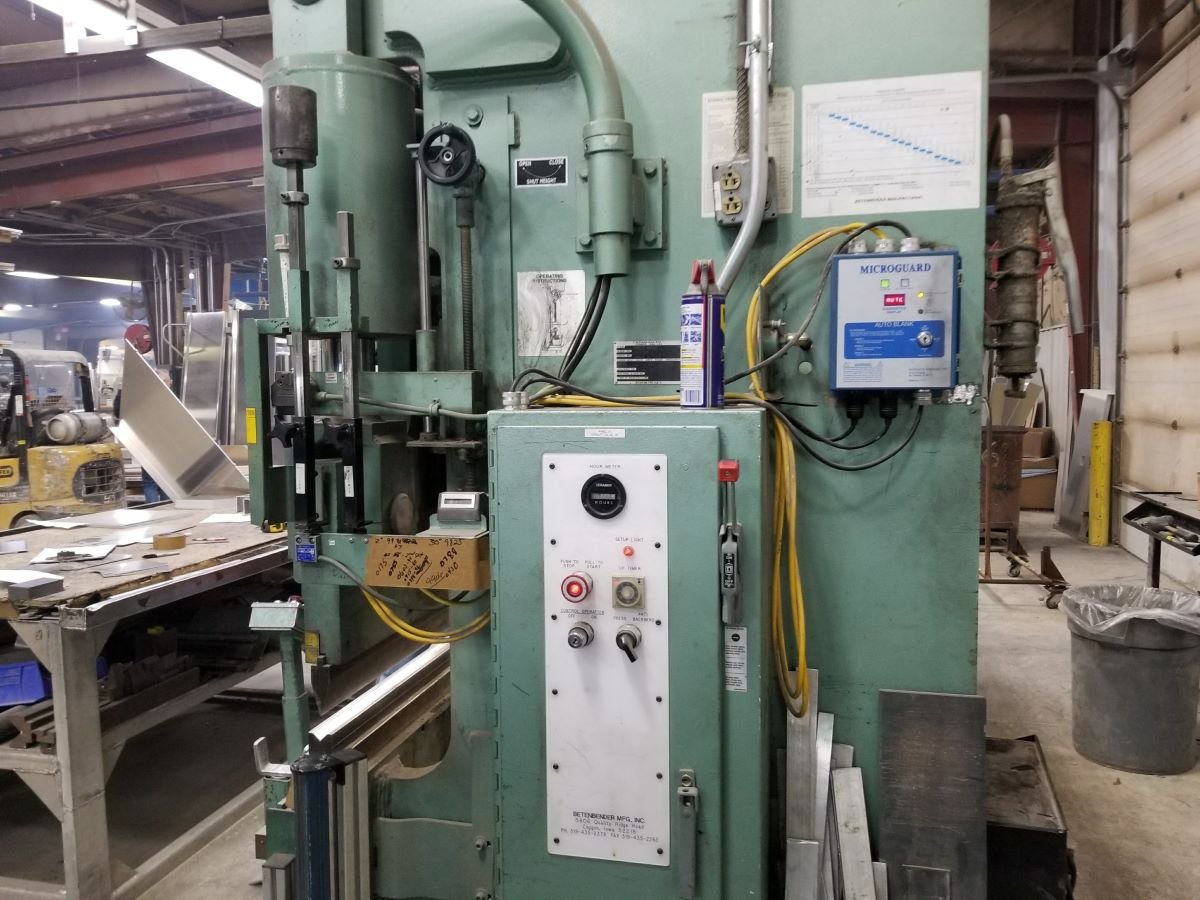

Microguard light curtains

Tonnage

190

Overall length of bed and ram

144"

Distance between housings

126-1/2"

Capacity @ 12' long

1/4" x 12'

Capacity @ 10' long

5/16" x 10'

Capacity @ 8' long

3/8" x 8'

Capacity @ 5' long

1/2" x 5'

Stroke

8"

Open height

14"

Shut height

6"

Throat depth

8''

Bed width

5"

Bed height

37"

Width of upper ram

3"

Width of upper machined ram

2-3/4"

Width of upper end plates

50"

Rapid approach speed

68" / minute

Pressing speed

31" / minute

Rapid return speed

86" / minute

Motor

20 HP

Volts

220 / 440

Phase

3

Approximate weight

25,000 lbs.
