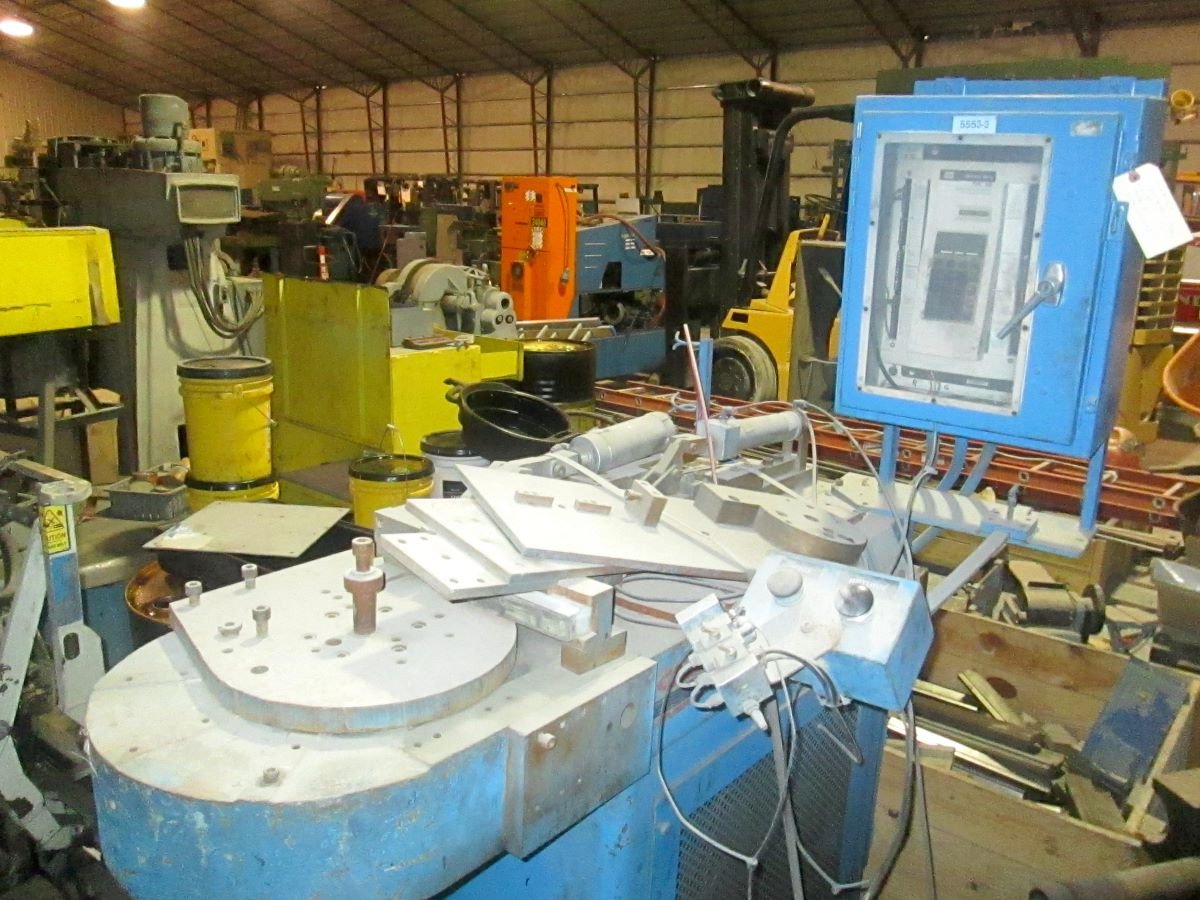

Motion Plus TDC100 digital servo controller

Capacities

–

... round

1" diameter mild steel

... square

3/4" mild steel

... flat bar

4" x 3/8" mild steel

... angle

1" x 1" x 3/16" mild steel

... channel

1" x 1/2" x 3/16" mild steel

... steel tubing

1-1/2" OD x16 gauge

Radius capacity

24"

Maximum degree of bend

360

Bending speeds approx.

6 – 12 RPM

Motor

3 HP / 1140 RPM

Voltage

208 / 220 / 440

Phase

3

Cycles

60

Amps

9.3 / 8.8 / 4.4

Approximate dimensions

30" x 60" x 72" high

Approximate weight

1,200 lbs.
