Manufacturer: Eagle

Model Number: 75 (VB300)

Serial Number: 77-0048

Model Year: Rebuilt 2001

Size: 3″

Stock Number: 12165

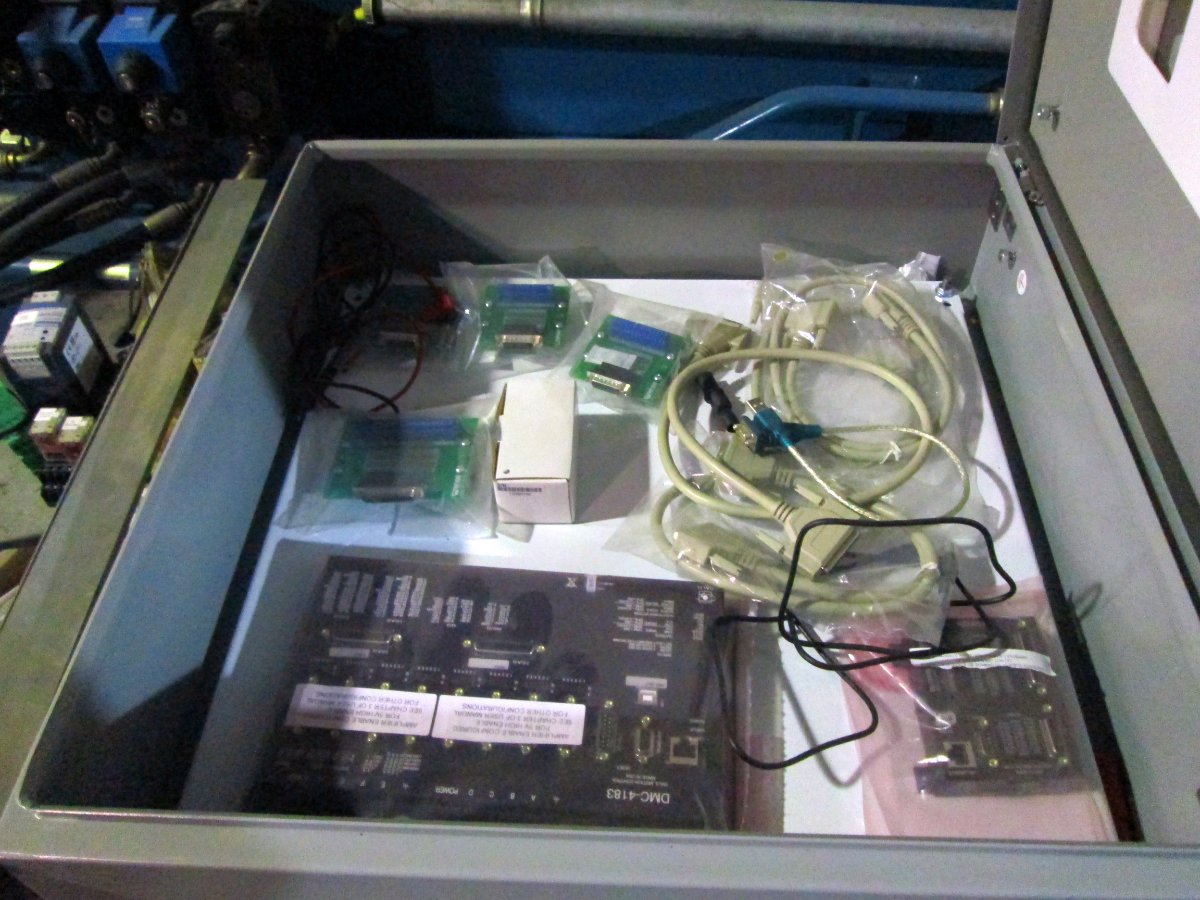

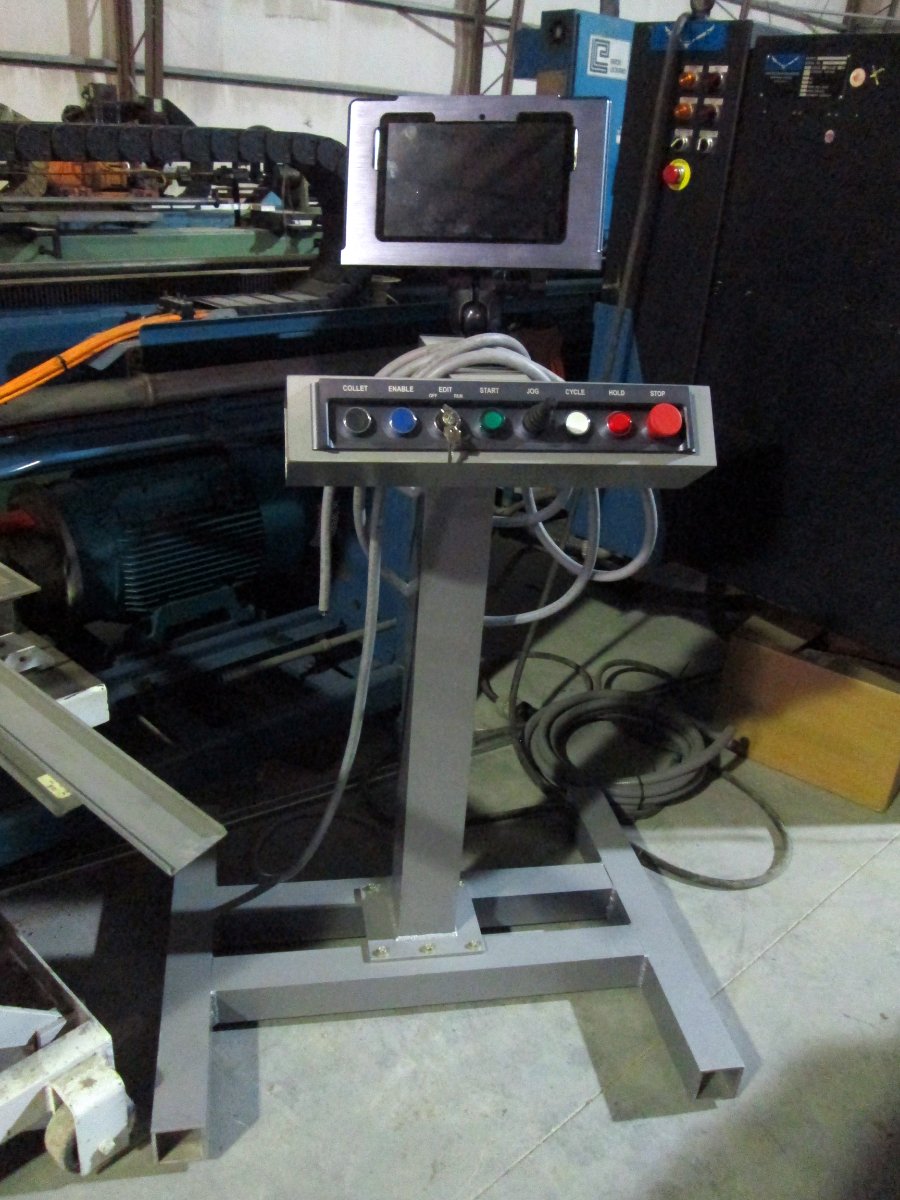

Includes new Phenix control (not installed)

CNC controls

Drop away swing arm

Mandrel

Clockwise rotation

Hydraulic

Capacity

3"

Maximum tube size

3" x .187"

Maximum bend arm travel

195 degrees

Maximum operating speed DOB

25 RPM

POB rotation

40 RPM

Centerline height

2.0"

Resolution & repeatability angular

+ or – .05 degrees

Maximum centerline radius

12"

Motor

41 HP

Volts

480

Phase

3

Cycles

60

Full load amps

68

Amps service

100

Approximate dimensions

21' 2" x 5' 1" x 5' 9" high

Approximate weight

12,000 lbs.
